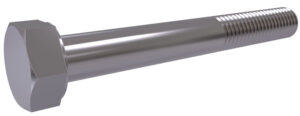

HEXAGON HEAD BOLT WITH SHANK
DIN 931 / ISO 4014
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
| D | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0,5 | 0,7 | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| K | 2 | 2,8 | 3,5 | 4 | 5,3 | 6,4 | 7,5 | 8,8 | 10 | 11,5 | |
| C | min. | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,2 | 0,2 |
| max. | 0,4 | 0,4 | 0,5 | 0,5 | 0,6 | 0,6 | 0,6 | 0,6 | 0,8 | 0,8 | |
| R | 0,1 | 0,2 | 0,2 | 0,25 | 0,4 | 0,4 | 0,6 | 0,6 | 0,6 | 0,6 | |
| S | DIN 931 | 5,5 | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 |
| ISO 4014 | 16 | 18 | 21 | ||||||||
| e | DIN 931 | 6,01 | 7,66 | 8,79 | 11,05 | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 30,14 |
| ISO 4014 | 17,77 | 20,03 | 23,36 | ||||||||
| B (L≤125) | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | |
| B (125<L≤200) | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | |
| B (L>200) | – | – | – | – | – | 45 | 49 | 53 | 57 | 61 | |
| D | M20 | M22 | M24 | M27 | M30 | M36 | M42 | M48 | M56 | M64 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 2,5 | 2,5 | 3 | 3 | 3,5 | 4 | 4,5 | 5 | 5,5 | 6 | |
| K | 12.5 | 14 | 15 | 17 | 18.7 | 22.5 | 26 | 30 | 35 | 40 | |
| C | min. | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 | 0,3 | 0,3 | 0,3 | 0,3 |
| max. | 0,8 | 0,8 | 0,8 | 0,8 | 0,8 | 0,8 | 1 | 1 | 1 | 1 | |
| R | 0,8 | 0,8 | 0,8 | 1 | 1 | 1 | 1,2 | 1,6 | 2 | 2 | |
| S | DIN 931 | 30 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | 85 | 95 |
| ISO 4014 | 34 | ||||||||||
| e | DIN 931 | 33,53 | 38,85 | 39,98 | 45,2 | 50,85 | 60,79 | 71,3 | 82,6 | 93,56 | 104,9 |
| ISO 4014 | 37,72 | ||||||||||
| B (L≤125) | 46 | 50 | 54 | 60 | 66 | – | – | – | – | – | |
| B (125<L≤200) | 52 | 56 | 60 | 66 | 72 | 84 | 96 | 108 | – | – | |
| B (L>200) | 65 | 69 | 73 | 79 | 85 | 97 | 109 | 121 | 137 | 153 | |
DIN 931 / ISO 4014 Hexagon Head Bolt from TFIT Fasteners are for the most part utilized in fix and development work. As the name infers, they have a hexagonal head and accompanied machine strings for a firm and harsh taking care of. They arrive in a wide scope of various hex bolt estimates for custom applications relying upon its dimensional prerequisites. These DIN 931 Hex Bolts come in the counter consumption tempered steel, compound steel and carbon steel materials which guarantees that the design doesn’t debilitate due to rust. Contingent upon the length of the bolt, it can accompany standard stringing or full stringing.
Since it is made out of such solid materials, these excellent grade 8.8 bolts are frequently utilized in high-temperature conditions like car parts get together. These DIN 931 Hex Bolts can likewise be utilized in marine and beach front activities because of its enemy of erosion property. We guarantee that every one of our items are sturdy and high strength parts which can just improve your work’s believability. On the off chance that you require tempered DIN 931 steel hex bolts, hex head bolts or hex bolts in enormous orders, reach out to us to get a statement.
