Material: The channel nuts are cold pressed, tapped so that their teeth will provide a “BITING” action into the in turned edges of channel sections. The nut bodies are designed with beveled end which lock into position by contact with interior side walls of channel when turned at 90 degree.
AVAILABILITY OF MATERIALS :
The channel nuts are also available in SS304 and SS316 grades in bright finish Finishes available:
» Zinc plated
» Yellow passivation
» Hot dip galvanized
 | |
NS-12001 | |
Long Spring Channel Nuts | |
Size (MM) X (H) | Size (INCH) X (H) |
M6 X 6MM | 1/4″ X 1/4″ |
M8 X 6MM | 5/16″ X 5/16″ |
M10 X 8MM | 5/16″ X 3/8″ |
M12 X 8MM | 3/8″ X 3/8″ |
M12 X 10MM | 1/2″ X 1/2″ |
5/8″ to 7/8″ X 3/8″ | |
5/8″ to 7/8″ X 7/16″ | |
5/8″ to 7/8″ X 1/2″ | |
1/2″ X 3/8″ | |
 | |
NS-12002 | |
Short / Conical Spring Channel Nuts | |
Size MM X (H) | Size (INCH) X (H) |
M6 X 6MM | 1/4″ X 1/4″ |
M8 X 6MM | 5/16″ X 5/16″ |
M10 X 8MM | 5/16″ X 3/8″ |
M12 X 8MM | 3/8″ X 3/8″ |
M12 X 10MM | 1/2″ X 1/2″ |
1/2″ X 3/8″ | |
 | |
NS-12003 | |

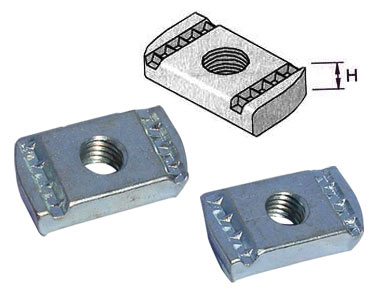

No Spring Channel Nuts | |
Size (MM) X (H) | Size (INCH) X (H) |
M6 X 6 MM | 1/4″ X 1/4″ |
M8 X 6MM | 5/16″ X 5/16″ |
M10 X 8MM | 5/16″ X 3/8″ |
M12 X 8MM | 3/8″ X 3/8″ |
1/2″ X 3/8″ | |
M12 X 10MM | 1/2″ X 1/2″ |
M16 X 12MM | 5/8″ to 7/8″ X 3/8″ |
5/8″ to 7/8″ X 7/16″ | |
5/8″ to 7/8″ X 1/2″ | |
 | |
NS-12004 | |

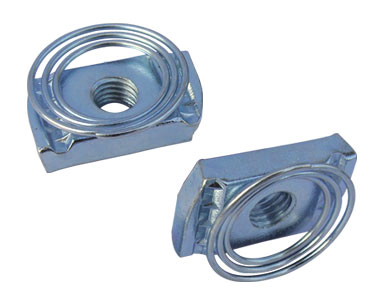

Top Spring Channel Nuts | |
Size (MM) X (H) | Size (INCH) X (H) |
M6 X 6 MM | 1/4″ X 1/4″ |
M8 X 6MM | 5/16 X 5/16″ |
M10 X 8MM | 5/16″ X 3/8″ |
M12 X 8MM | 3/8″ X 3/8″ |
M12 X 10MM | 1/2″ X 1/2″ |
1/2″ X 3/8″ | |
