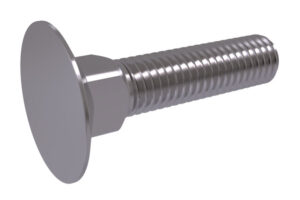

FLAT COUNTERSUNK HEAD BOLTS
WITH LONG SQUARE NECK
DIN 605
Steel Grades: 4.8, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

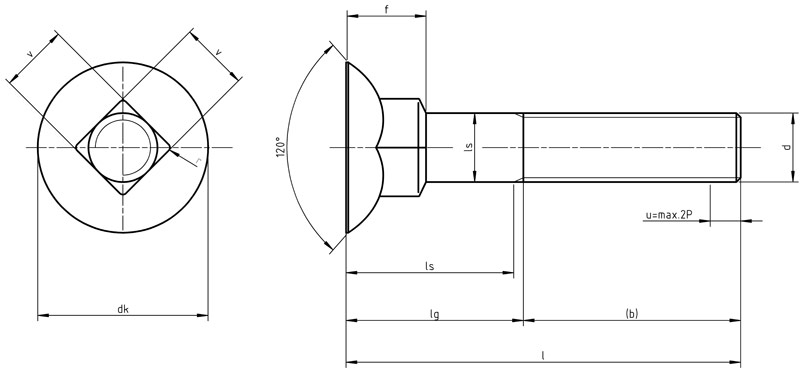

| Thread d | M6 | M8 | M10 | |||||
| P | 1 | 1,25 | 1,5 | |||||
| b | l?125mm | 18 | 22 | 26 | ||||
| 125<l?200mm | 24 | 28 | 32 | |||||
| l>200mm | – | 41 | 45 | |||||
| dk | max. | 16,55 | 20,65 | 24,65 | ||||
| min. | 15,45 | 19,35 | 23,35 | |||||
| ds | max. | 6 | 8 | 10 | ||||
| min. | 5,52 | 7,42 | 9,42 | |||||
| f | max. | 7,45 | 9,45 | 11,55 | ||||
| min. | 6,55 | 8,55 | 9,45 | |||||
| r | max. | 0,9 | 1,2 | 1,5 | ||||
| v | max. | 6,48 | 8,58 | 10,58 | ||||
| min. | 5,52 | 7,42 | 9,42 | |||||
| l | ls | lg | ls | lg | ls | lg | ||
| nominal | min. | max. | min. | max. | min. | max. | min. | max. |
| 30 | 28,95 | 31,05 | – | 12,5 | – | 16 | ||
| 35 | 33,75 | 36,25 | – | 12,5 | – | 16 | ||
| 40 | 38,75 | 41,25 | 17 | 22 | – | 16 | – | 18 |
| 45 | 43,75 | 46,25 | 22 | 27 | 16,75 | 23 | – | 18 |
| 50 | 48,75 | 51,25 | 27 | 32 | 21,75 | 28 | 16,5 | 24 |
| 55 | 53,5 | 56,5 | 32 | 37 | 26,75 | 33 | 21,5 | 29 |
| 60 | 58,5 | 61,5 | 37 | 42 | 31,75 | 38 | 26,5 | 34 |
| 65 | 63,5 | 66,5 | 36,75 | 43 | 31,5 | 39 | ||
| 70 | 68,5 | 71,5 | 41,75 | 48 | 36,5 | 44 | ||
| 80 | 78,5 | 81,5 | 51,75 | 58 | 46,5 | 54 | ||
| 90 | 88,75 | 91,75 | 56,5 | 64 | ||||
| 100 | 98,25 | 101,75 | 66,5 | 74 | ||||
| Thread d | M6 | M8 | M10 |
| l | Wight kg/1000pcs | ||
| 30 | 8,8 | 15,4 | |
| 35 | 9,8 | 17,4 | |
| 40 | 10,8 | 19,3 | 30,6 |
| 45 | 11,9 | 21,3 | 33,6 |
| 50 | 12,9 | 23,2 | 36,5 |
| 55 | 13,9 | 25,2 | 39,4 |
| 60 | 14,9 | 27,1 | 42,4 |
| 65 | 29,1 | 45,3 | |
| 70 | 31 | 48,2 | |
| 80 | 34,9 | 54,1 | |
| 90 | 59,9 | ||
| 100 | 65,7 | ||
Material | Standards | Grades |
|---|---|---|
Nickel Alloy DIN 605 – Flat Countersunk Square Neck Bolts | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 | UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Stainless Steel DIN 605 – Flat Countersunk Square Neck Bolts | ASTM / ASME A/SA 193 / 194 | B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4 |
Alloy Steel DIN 605 – Flat Countersunk Square Neck Bolts | ASTM / ASME A/SA 193 / 194 GR | B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
Duplex Steel DIN 605 – Flat Countersunk Square Neck Bolts | UNS NO. S 31803, S 32205 | Range: M10 TO M100, LENGTH UPTO 5 METERS |
Nonmetallic Materials: | Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105 | |
High-Temp Alloys | Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330 | |
Copper Base Alloys | Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles | |
Aluminum Alloys: | 1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075 | |
Trademarks: | Carpenter, Armco, INCO, Cabot, DuPont. | |
Finish: | Black Oxide, Zinc Plating, Hot Dip Galvanized | |
DIN 605 – Flat countersunk square neck bolt
TFIT Fasteners is premier organization in providing the best nature of DIN 605 – Flat countersunk square neck bolts It is accessible in a wide scope of thickness, lengths, and amounts at affordable rates in India.
DIN 605 CSK Bolts has a head point of around 80 °. It is utilized when a smooth surface is required It has normal applications like walkways, connect decking, and railing. It is bolt clasp with a level headed and a hex attachment crash into the head.
