HEXAGON SET SCREWS

DIN 558 / ISO 4017

Steel Grades: 4.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

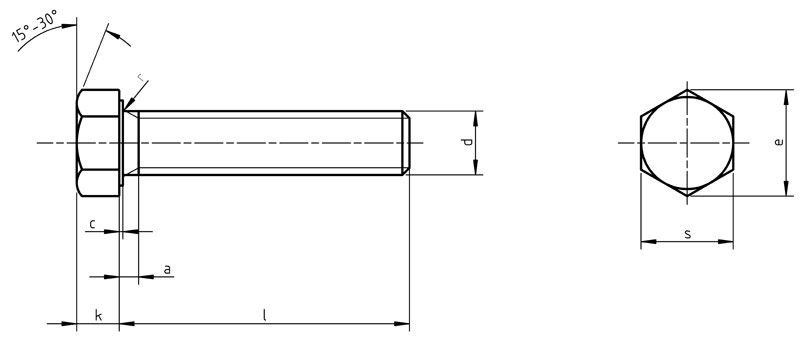

**Sizes and characteristics of hexagon head bolts and full thread DIN 558**
D		M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48	M56	M64
P		0,8	1	1,25	1,5	1,75	2	2	2,5	2,5	2,5	3	3	3,5	4	4,5	5	5,5	6
K		3,5	4	5,3	6,4	7,5	8,8	10	11,5	12,5	14	15	17	18,7	22,5	26	30	35	40
C max.		0,5	0,5	0,6	0,6	0,6	0,6	0,8	0,8	0,8	0,8	0,8	0,8	0,8	0,8	1	1	1	1
R		0,2	0,25	0,4	0,4	0,6	0,6	0,6	0,6	0,8	0,8	0,8	1	1	1	1,2	1,6	2	2
A max.		2,4	3	4	4,5	5,3	6	6	7,5	7,5	7,5	9	9	10,5	12	13,5	15	16,5	28
e	DIN 558	8,63	10,89	14,2	18,72	20,88	23,91	26,17	29,56	32,95	38,42	39,55	45,2	50,85	60,79	71,3	82,6	93,56	104,86
e	ISO 4018	8,63	10,89	14,2	17,59	19,85	22,78	26,17	29,56	32,95	37,29	39,55	45,2	50,85	60,79	71,3	82,6	93,56	104,86
S	DIN 558	8	10	13	17	19	22	24	27	30	32	36	41	46	55	65	75	85	95
S	ISO 4018	8	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75	85	95
L	min.	10	12	10	16	16	20	25	35	30	45	50	55	60	70	80	100	110	120
L	max.	60	80	100	100	120	100	160	180	200	220	240	280	300	360	420	480	500	500

Material	Standards	Grades
Nickel Alloy DIN 558 – Fully Threaded Machine Bolts	ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472	UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel DIN 558 – Fully Threaded Machine Bolts	ASTM / ASME A/SA 193 / 194	B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel DIN 558 – Fully Threaded Machine Bolts	ASTM / ASME A/SA 193 / 194 GR	B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel DIN 558 – Fully Threaded Machine Bolts	UNS NO. S 31803, S 32205	Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:	Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys	Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys	Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:	1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:	Carpenter, Armco, INCO, Cabot, DuPont.
Finish:	Black Oxide, Zinc Plating, Hot Dip Galvanized

DIN 558

Maker and Supplier of DIN 558 Fully Threaded Machine Bolts and Fully Threaded Maching Bolts, Metric Fully Threaded Machine Bolts according to custom particular in India.

DIN 558 Alloy Steel Fully Threaded Maching Bolts, Nickel Alloy Fully Threaded Bolts, Stainless Steel Fully Threaded Machine Bolts, Fully Threaded Brass Bolts Exporter.

TFIT Fasteners is India based organization that spent significant time in offering top tier and a wide scope of DIN 558 Fully Threaded Maching Bolts that were recently used as hex Bolts in India and across universally. We have an encounter of over twenty years in the field of Threaded Maching Bolts with most recent cutting edge innovations and sharp labor force capacity.

Being ISO Certified Fasteners association, we keep up with the biggest stock of DIN 558 Fully Threaded Maching Bolts which incorporates DIN 558 Stainless Steel Fully Threaded Maching Bolts, Carbon Steel Fully Threaded Maching Bolts, DIN 558 Nickel Alloy Fully Threaded Maching Bolts, Alloy Steel Fully Threaded Maching Bolts and so on.
