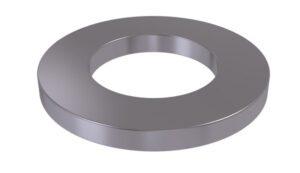

FLAT WASHER & PLAIN WASHER
DIN 126 ISO 7091
Steel Hardness: 100HV
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
| Nominal size | d1 | d2 | h | ||||
| Nominal = min. | Max. | Nominal = max. | min. | Nominal | max. | min. | |
| 1,6 | 1,8 | 2,05 | 4 | 3,25 | 0,3 | 0,4 | 0,2 |
| 2 | 2,4 | 2,65 | 5 | 4,25 | 0,3 | 0,4 | 0,2 |
| 2,5 | 2,9 | 3,15 | 6 | 5,25 | 0,5 | 0,6 | 0,4 |
| 3 | 3,4 | 3,7 | 7 | 6,1 | 0,5 | 0,6 | 0,4 |
| 4 | 4,5 | 4,8 | 9 | 8,1 | 0,8 | 1 | 0,6 |
| 5 | 5,5 | 5,8 | 10 | 9,1 | 1 | 1,2 | 0,8 |
| 6 | 6,6 | 6,96 | 12 | 10,9 | 1,6 | 1,9 | 1,3 |
| 8 | 9 | 9,36 | 16 | 14,9 | 1,6 | 1,9 | 1,3 |
| 10 | 11 | 11,43 | 20 | 18,7 | 2 | 2,3 | 1,7 |
| 12 | 13,5 | 13,93 | 24 | 22,7 | 2,5 | 2,8 | 2,2 |
| 16 | 17,5 | 17,93 | 30 | 28,7 | 3 | 3,6 | 2,4 |
| 20 | 22 | 22,52 | 37 | 35,4 | 3 | 3,6 | 2,4 |
| 24 | 26 | 26,52 | 44 | 42,4 | 4 | 4,6 | 3,4 |
| 30 | 33 | 33,62 | 56 | 54,1 | 4 | 4,6 | 3,4 |
| 36 | 39 | 40 | 66 | 64,1 | 5 | 6 | 4 |
| 42 | 45 | 46 | 78 | 76,1 | 8 | 9,2 | 6,8 |
| 48 | 52 | 53,2 | 92 | 89,8 | 8 | 9,2 | 6,8 |
| 56 | 62 | 63,2 | 105 | 102,8 | 10 | 11,2 | 8,8 |
| 64 | 70 | 71,2 | 115 | 112,8 | 10 | 11,2 | 8,8 |
TIFT Fasteners DIN 126 is creating best quality and exceptionally dependable sheet metal and stepping washers items like Mild Steel Washers, fashioned washers like Plain and Flat Washers, Hardened Washers, All DIN Standard Washers, IS Standard Washers, USS Standard Washers, Spring Lock Washer, Tooth Lock Washers, Tab Washers, Taper Washers, Crinkle Washers, Square Washers Din436 washer, Wave Washers, Din 1440 plain washer ISO 8738, Special Purpose Washers, Machine washers, Industrial Washers and so on.
We additionally trade Metric washers, primary washers, tempered steel solidified washers, USS level washers, Spring Steel Flat Washers, Plain Finish washer, bended washers, Penny Washer, stepping washers, wood development square opening washers and specific reason washers and so forth to International Market from India.
We are Indian assembling organization of Stainless Steel Washers like Plain Washers, Flat Washers according to clamor 125a washer iso 7089 Din 125b plain washer iso 7090, Din 126 plain washer, racket 126 plain washer iso 7091, commotion 9021, is2016 washers with accessible sizes M3 To M56 and so on We additionally produce commotion Din 127 spring washers and racket 128 spring lock washers bended and wave, Double looped spring washer. Our other Zinc plated steel washers range incorporates with grade 5 and grade 8 steel. We are likewise providing Hot plunged aroused steel washer, Nickel plated steel washers, Chrome plated steel washers, Conical Washers or Belleville Spring Washer with DIN 137A , DIN 137B, DIN 6796, Star Washers or star lock washer, dimple washers and so on at discount cost.
